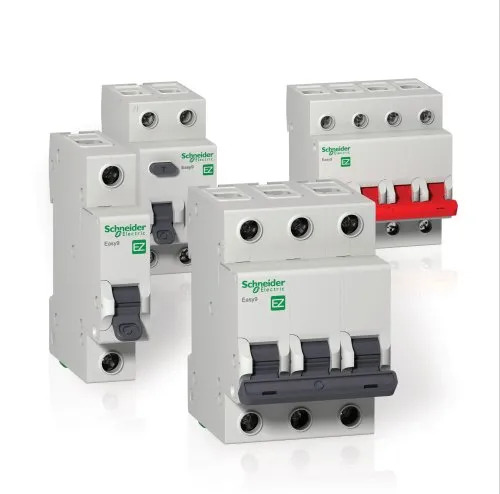

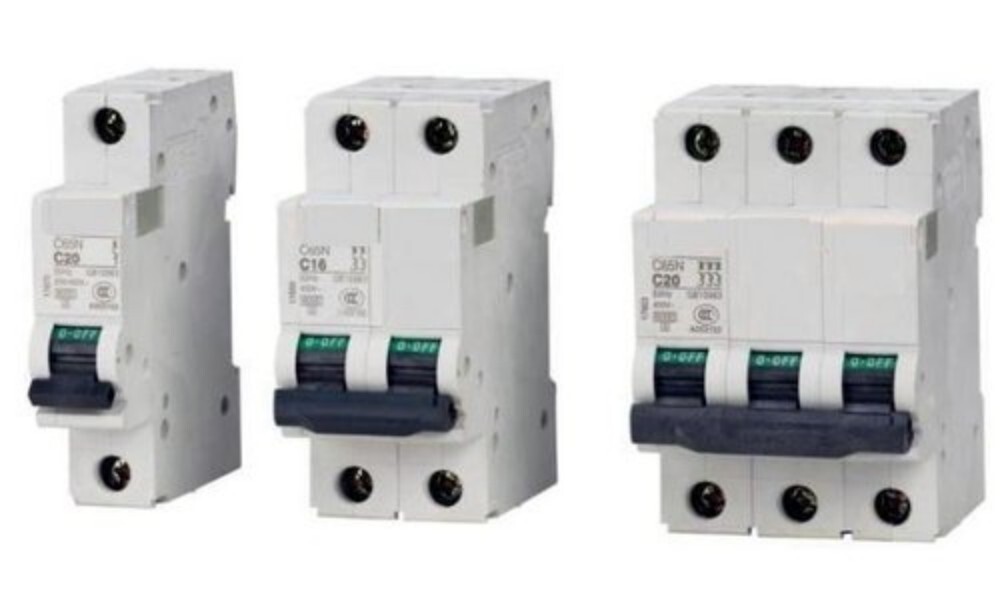

Electrical Switchgear



<< Previous   Electrical Switchgear   Next >>
Product Description

Since our establishment, we are engaged in supplying a wide range of Electrical Switchgear. Offered switchgear is available in the market due to its sturdiness and perfect dimensions. This range of switchgear can be used for distribution, circuit control, protection, power acceptance and detection applications. This switchgear is precisely manufactured by making use of the quality tested materials that are procured from the reliable vendors of the industry. Offered Electrical Switchgear can be availed from the market at industry leading prices.

Features:

  • Easy installation
  • Shock proof body
  • Sturdy in nature

Further Details:

Additional Information:

The Power instability in developing countries along with the inefficient rationalized power distribution creates a need for the alternative source of power, to back up the utility supply. This further necessitates the automation, in the distribution system as the rate of power outage & low voltage output becomes predominantly high. Most of the Residential & commercial processes are dependent on power supply & if the process of changeover is manual, this will not only create the hindrance in important activities but it may also damage the device or machine from human error during the changeover.

Havells ACCL is a fully automatic high precision microcontroller based device having Current limiting function providing on both Generator supply & mains supply and is ideally suited for proper/efficient utilization of standby generator used in multi-storied apartments, commercial complexes, etc.

Technical Specifications:
Standard Conformity : IEC 60947-6 /IEC 60947-3 / IS 13947-3
No. Of Poles : 1P+N
Rated current (In) : 30A on mains,3-20A on generator
Rated voltage (Ue) : 240 Vac
Operational voltage : 80-300Vac
Restoring Time : 10 sec
Dielectric strength : 2.0kV
Utilization Category : AC 21A (IEC 60947-3) / AC 31B (IEC 60947-6)
Indication : Mains, Generator, Load, Overload
Ambient Temp. : -5 to +55oC
Electrical Life : 6000 operations
Pollution Degree : 2
Conditional Short : 3kA Circuit Breaking Capacity
Protection Class : IP20
Mounting : standard mounting RAIL (35x7.5 mm)
Mounting Position : Vertical /Horizontal
Terminal Capacity mm2 : 10
Weight : 350 gms.

Features:

  • Microcontroller based DIN rail mountable automatic source changeover with neutral isolation
  • Inbuilt SMPS for low power consumption
  • Operational status indication through LEDs
  • Manual reset provision for restoring supply, when in sleep mode
  • Automatic generator on/off facility (on special demand)
  • Staggered terminal design with bottom wiring for better isolation between phase & neutral

Product Code : 19      Brand Name :VIJAY KUMAR SANJEEV KUMAR
